Jointing plate 100 x 200 x 3
TTC : €1.54
€1.28
SKU
PLAT10203002
Jointing plate 100 x 200 x 3 is available to buy in increments of 40

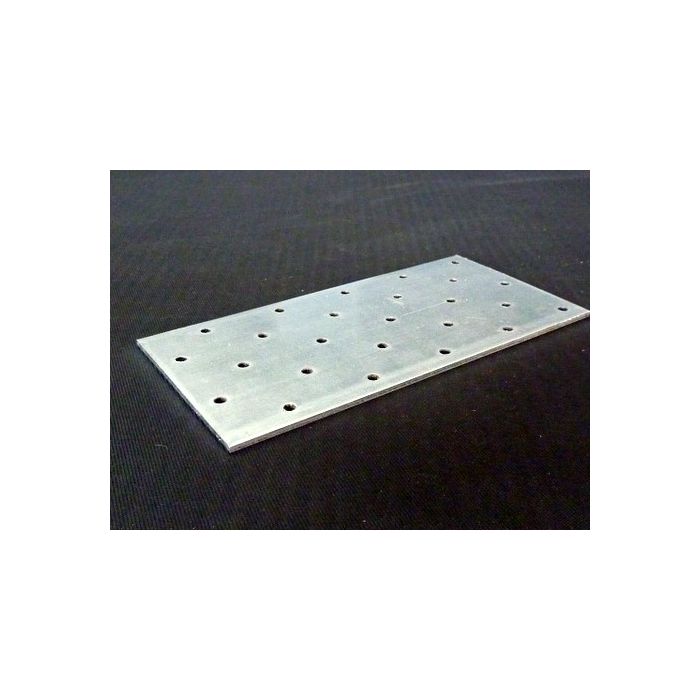

Jointing flat in galvanised steel
Width 100 mm x length 200 mm x thickness 3 mm
40 plates per bag
Minimum order quantity : 40 plates
The perforated plates are used for frame connection. They consist on a galvanised steel plate with 25 holes of 5 mm diameter and are adapted to tensile and compression stresses.
| material | Steel S250GD-Z according NF 10027-1 |
|---|---|
| surface / color | Hot dip galvanisation, typical zinc coating thickness 20 µm |
| Width (mm) | 100 |
| small length (mm) | 200 |
| thickness (mm) | 3 |
| hole diameter (mm) | 5 |
