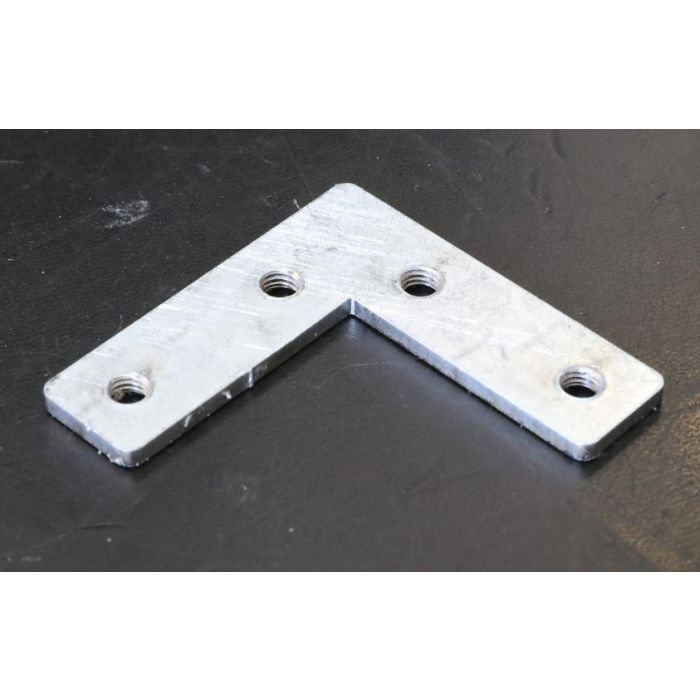

Jointing plate L 50 x 50 x 15 x 2 with 4 M5 tapped holes
TTC : €1.64
€1.37
In stock
SKU
PLAT55152002
- Buy 500 for TTC : €1.22 €1.02 each and save 26%
- Buy 1000 for TTC : €1.02 €0.85 each and save 38%
- Buy 2500 for TTC : €0.89 €0.74 each and save 46%
- Buy 5000 for TTC : €0.85 €0.71 each and save 48%
Jointing plate L 50 x 50 x 15 x 2 with 4 M5 tapped holes is available to buy in increments of 250
Jointing flat in galvanised steel
Width 15 mm x length 50 mm x thickness 2 mm
250 plates per bag
Minimum order quantity : 250 plates
The perforated plates are used for frame connection. They consist on a galvanised steel plate with 12 holes of 5 mm diameter and are adapted to tensile and compression stresses.
| material | Steel S250GD-Z according NF 10027-1 |
|---|---|
| surface / color | Hot dip galvanisation, typical zinc coating thickness 20 µm |
| Width (mm) | 50 |
| small length (mm) | 15 |
| thickness (mm) | 2 |
| hole diameter (mm) | M5 |
