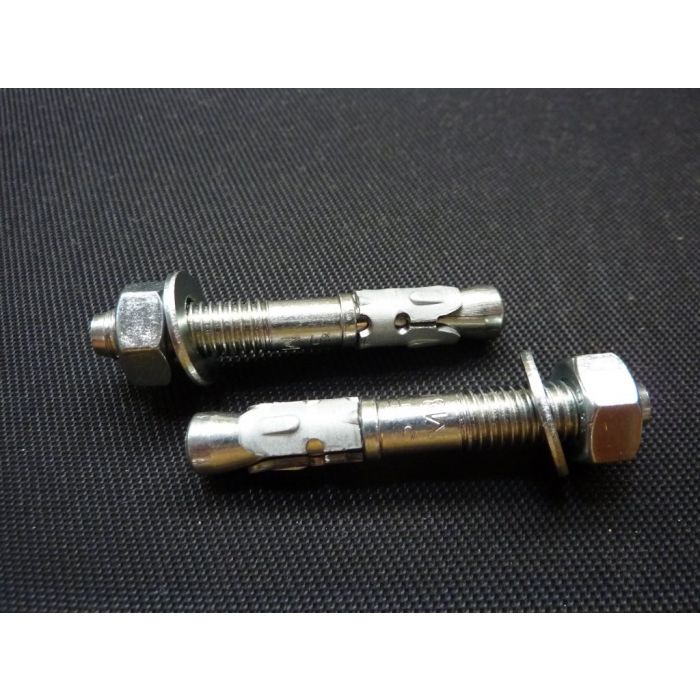

Assembled Through Bolt Anchor Spit Fix II M8 x 55
TTC : €0.44
€0.37
In stock
SKU
CHEV08005503
Assembled Through Bolt Anchor Spit Fix II M8 x 55 is available to buy in increments of 100
Spit Fix II is a traditional expanding stud anchor, which is a torque controlled mechanical through fixing.
Applications: Steel and timber framework, Lift guide rails, Industrial doors and gates, Brickwork support angles, Storage systems / pallet racking
100 anchors per bag
Minimum order quantiy : 100 anchors
Features & Benefits
- Load assisted through fixing
- Anti-rotation expansion sleeve
- Drill bit required is same as anchor diameter
- Chamfered head - To protect the threads during installation
- Expansion sleeve design - Ensures maximum expansion
- Nut steel grade 6-8
- Rolled thread - To increase strength
- Zinc coated expansion sleeve - High quality
- Sleeve with three legs - To distribute the expansion stress on the whole cone
- Six projection - To avoid rotation of the sleeve during tightening
- Improved efficiency - On average the Spit Fix II needs 25% less hammer blows to install the anchor and 20% less turns of the anchor to achieve full torque
Installation
Torque controlled expansion anchor, installed by hammering the bolt through the fixture. Expansion clip profile ensures the anchor pre-grips the hole surface prior to setting. Tightening the anchor pulls into the expansion sleeve expanding the clip and securing the fixture against the substrate.
diameter (mm) | M8 |
---|---|
big length (mm) | 55 |
